UniversalViewer "Unable to load manifest" in iframe

[ay9010x]

Hello there,

I got a question on UniversalViewer.

Our lab use omeka-s as a digital archive platform,
so we upload image for item, and use UniversalViewer to show it on other website.

That url like this:
https://test-omekas-ssl.ccstw.nccu.edu.tw/item/1/uv
It work as well.

But when we put that url in an iframe (other site),
that alert “Unable to load manifest”.

That iframe like this:

<iframe src="https://test-omekas-ssl.ccstw.nccu.edu.tw/item/1/uv" width="700px" height="500px" frameborder="0" scrolling="no"> </iframe>

Because that iframe work on page of self omeka-s,
I think that maybe cause by some cors problems.

But I have already:

• checked ‘Append CORS headers to web server response’ in IIIF Server Configure
• added ‘Header set Access-Control-Allow-Origin “*”’ in apache2 config
  (so it work if just put that image url in other site iframe)

I also set ‘Force base of url’ in IIIF Server Configure as site url.
(https://test-omekas-ssl.ccstw.nccu.edu.tw/)
But still, it wasn’t working whether I set this configure or not.

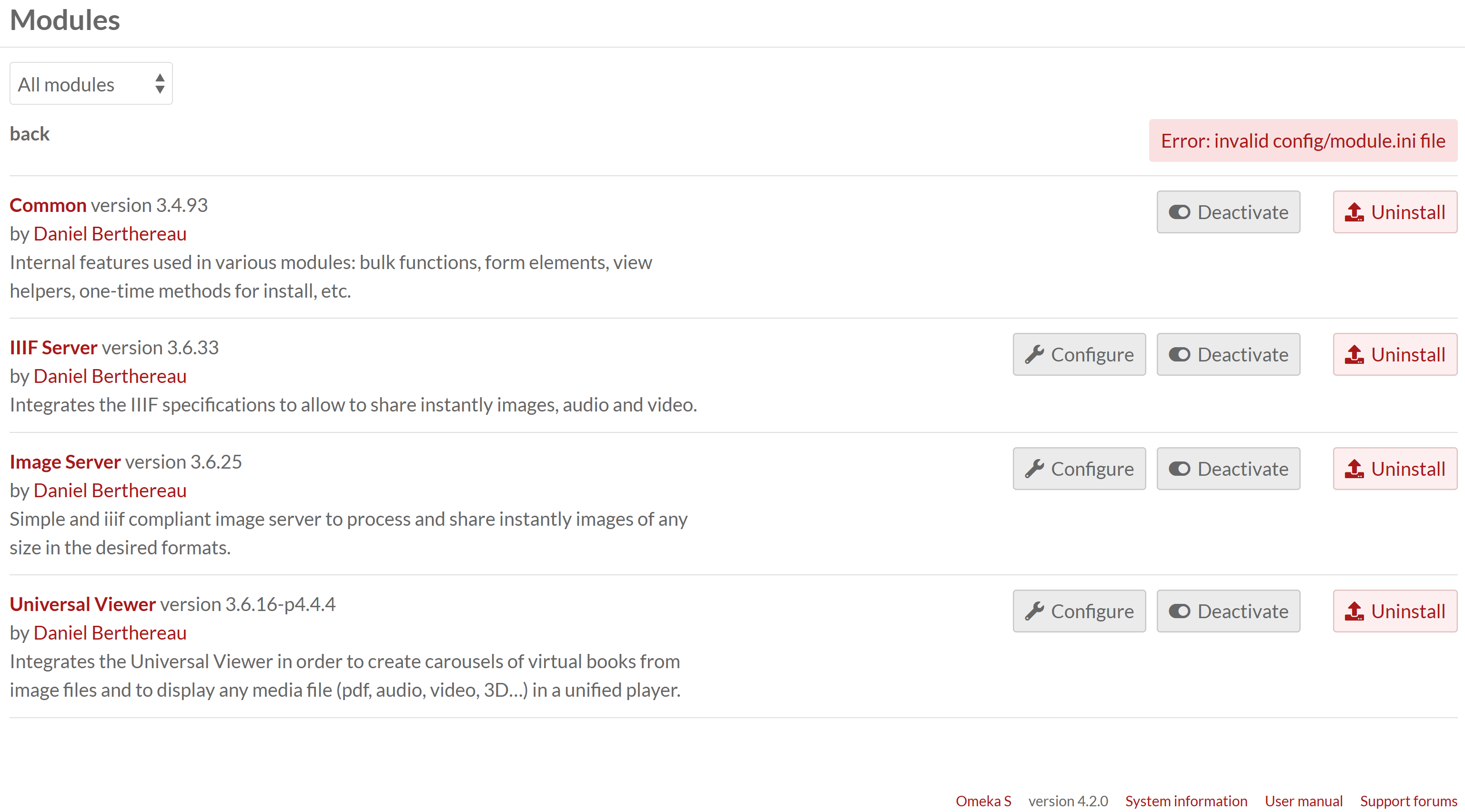

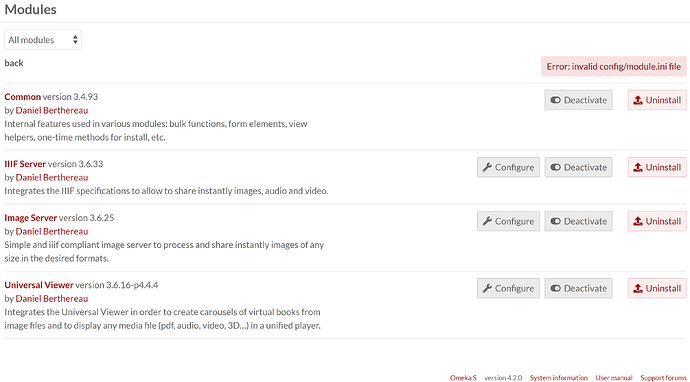

Here is my verson of three modules:

• IIIF Server 3.6.17
• Image Server 3.6.15
• Universal Viewer 3.6.7

And the older version do NOT get this error:

• IIIF Server 3.6.6.7
• Image Server 3.6.3.1
• Universal Viewer 3.6.4.5

(But it got some zoom rate problem, that why I upgrade UV to 3.6.7.)
(We use Omeka-s 3.2.3 on many site, so I cant upgrade UV to later version.)

Is any other thing I should do?

Thank!

[ay9010x]

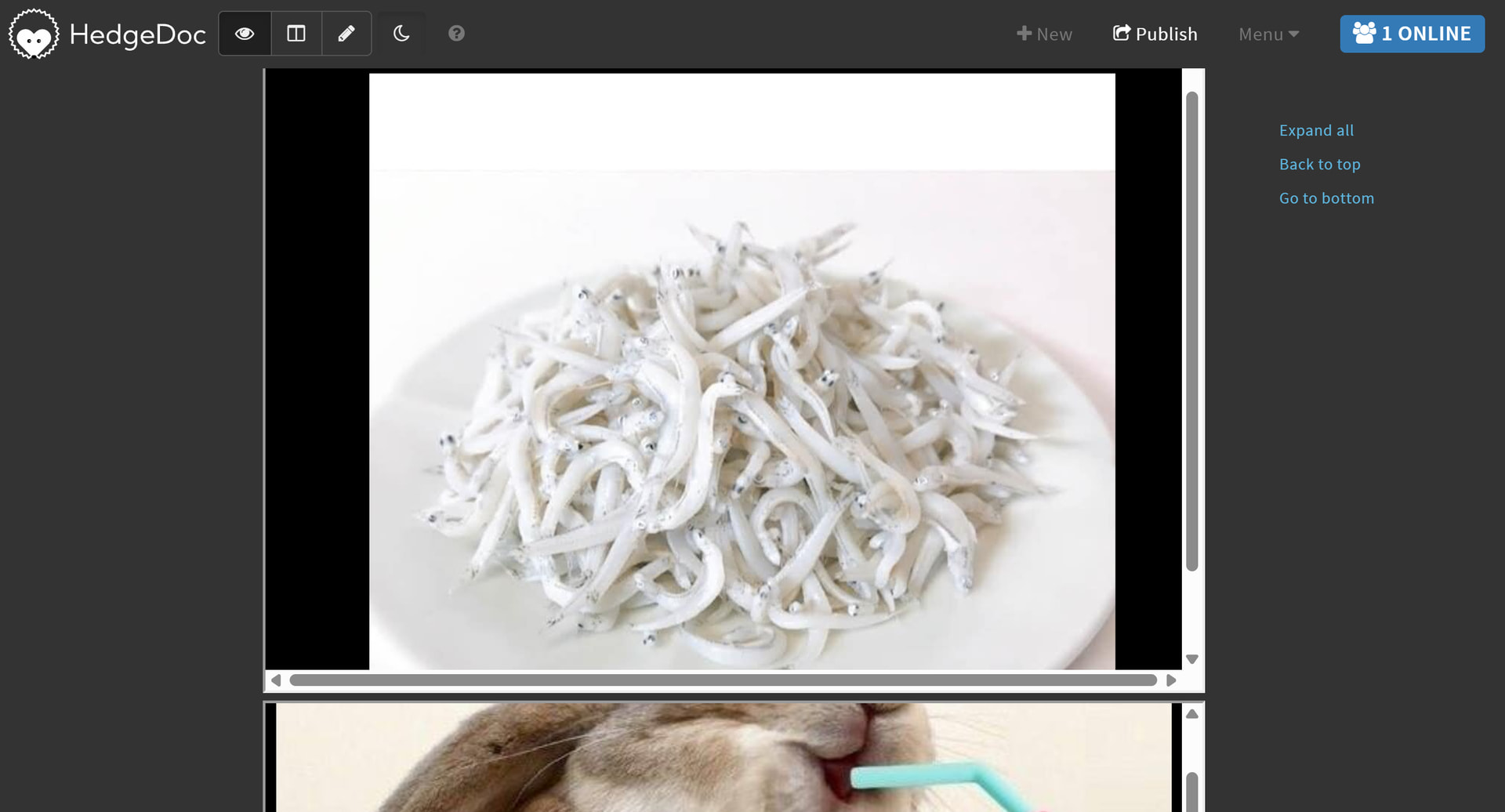

Additional image for “iframe work on page of self omeka-s”.

[IOPNdev]

I found this post after getting the same result when trying to embed the UV into another site and trying the same things. @ay9010x did you ever resolve the issue? @Daniel_KM is there something that we are missing here?

[IOPNdev]

Okay, so it looks like there is a config setting that allows embedding, you just need to set {“embedded”: “true”} in your installation’s global settings for the UV.

[boregar]

Hi IOPNdev, I have the same issue but I’m a bit confused with

you just need to set {“embedded”: “true”} in your installation’s global settings for the UV.

I guess you have to add this setting in the Players section of the Global settings page. Could you please indicate where you put it in the config structure?

[IOPNdev]

Yeah, from the admin interface, under the Admin click “Settings”. From there if you scroll to the bottom and there should be a section called Player where the Universal Viewer configuration options are located

If you are running v4, enter
{"embedded": "true"}
as the value for “Universal viewer: Config as json for v4” and hit save.

Then, go ahead and test your iframe embed in another site and it should work.
